Trajectory Inference for Three Slices of the Mouse Thymus Dataset
Loading Packages
[1]:
import warnings
warnings.filterwarnings('ignore')
import scanpy as sc
import numpy as np
import os
os.environ["KMP_DUPLICATE_LIB_OK"]="TRUE"
Loading Data
[2]:
def load_data(replicate):
"""
Load data from files for each replicate and store them in a dictionary.
Parameters:
- replicate: list of strings, the replicate identifiers.
Returns:
- adata_analysis: dictionary, where keys are replicate identifiers and values are AnnData objects.
"""
adata_analysis = {}
for rep in replicate:
file_path = f'../../../Mouse_Thymus_Replicate{rep}.h5ad'
adata_analysis[f'replicate_{rep}'] = sc.read_h5ad(file_path)
return adata_analysis
replicate = ['1', '2', '3']
adata_analysis = load_data(replicate)
Calculating UMAP
[3]:
def calculate_umap(adata, methods):
"""
Calculate UMAP for each method and store the results in the AnnData object.
Parameters:
- adata: AnnData object, the data to process.
- methods: list of strings, the methods to calculate UMAP for.
"""
for method in methods:
if method in adata.obsm:
print(method)
sc.pp.neighbors(adata, use_rep=method)
# print(" run1")
sc.tl.umap(adata, min_dist=0.5, spread=0.5)
# print(" run2")
adata.obsm[f'{method}_UMAP'] = adata.obsm['X_umap']
# print(" run3")
del adata.obsm['X_umap']
else:
print(f"Method '{method}' not found in obsm.")
methods_analysis = ['SpatialCOC', 'SpatialGlue', 'Seurat', 'STAGATE']
Calculating Centroids
[4]:
def calculate_centroids(adata, methods):
"""
Calculate centroids for each cluster of each method.
Parameters:
- adata: AnnData object, the data to process.
- methods: list of strings, the methods to calculate centroids for.
Returns:
- centroids_dict: dictionary, where keys are method names and values are dictionaries of centroids.
"""
centroids_dict = {}
for method in methods:
umap_key = f'{method}_UMAP'
if umap_key in adata.obsm:
unique_clusters = np.unique(adata.obs[method])
centroids = {}
for cluster in unique_clusters:
umap_coords = adata[adata.obs[method] == cluster].obsm[umap_key]
centroid = np.mean(umap_coords, axis=0)
centroids[cluster] = centroid
centroids_dict[method] = centroids
else:
print(f"UMAP for method '{method}' not found in obsm.")
centroids_dict[method] = None
return centroids_dict
PAGA Analysis
[5]:
def perform_paga(adata, methods):
"""
Perform PAGA for each method and store the results in the AnnData object.
Parameters:
- adata: AnnData object, the data to process.
- methods: list of tuples, where each tuple contains the cluster key and the embedding key.
"""
for cluster_key, embed_key in methods:
sc.pp.neighbors(
adata,
use_rep=embed_key,
key_added=f'neighbors_{cluster_key}',
n_neighbors=50
)
sc.tl.paga(
adata,
groups=cluster_key,
neighbors_key=f'neighbors_{cluster_key}'
)
adata.uns[f'paga_{cluster_key}'] = adata.uns['paga'].copy()
methods = [
('SpatialCOC', 'SpatialCOC'),
('SpatialGlue', 'SpatialGlue'),
('Seurat', 'Seurat'),
('STAGATE', 'STAGATE'),
]
Ploting Function
[6]:
def plot_umap_with_centroids(adata, methods, replicate, paga_thresholds, colors_by_replicate_and_method):
"""
Plot UMAP with centroids and PAGA connections for each method in the given replicate.
Parameters:
adata (AnnData): The AnnData object containing the data.
methods (list): A list of tuples, where each tuple contains the cluster key and embed key for a method.
replicate (str): The current replicate being processed.
paga_thresholds (dict): A dictionary where keys are method names and values are the corresponding PAGA thresholds.
colors_by_replicate_and_method (dict): A dictionary where keys are replicate numbers, and values are dictionaries with method names as keys and color lists as values.
"""
all_connects = {}
for cluster_key, embed_key in methods:
print(cluster_key)
umap_key = f'{embed_key}_UMAP'
if umap_key not in adata.obsm or cluster_key not in adata.obs:
print(f"Skipping {cluster_key} - data not found")
continue
# Get the color list corresponding to the current replicate and method
colors = colors_by_replicate_and_method[replicate][cluster_key]
unique_clusters = np.unique(adata.obs[cluster_key])
centroids = {
cluster: np.mean(adata[adata.obs[cluster_key] == cluster].obsm[umap_key], axis=0)
for cluster in unique_clusters
}
print(f"Plot for {cluster_key} in replicate {replicate}:")
fig, ax = plt.subplots(figsize=(6, 6))
ax.scatter(
adata.obsm[umap_key][:, 0],
adata.obsm[umap_key][:, 1],
c=[colors[int(x) % len(colors)] for x in adata.obs[cluster_key]],
s=100,
alpha=0.7
)
# Plot centroids
for cluster, centroid in centroids.items():
ax.scatter(centroid[0], centroid[1], marker='o', color='black', s=800)
# Plot PAGA connections
paga_key = f'paga_{cluster_key}'
if paga_key in adata.uns:
connectivities = adata.uns[paga_key]['connectivities'].toarray()
all_connects[cluster_key] = connectivities
cluster_indices = {cluster: i for i, cluster in enumerate(unique_clusters)}
print(f" {paga_key=} {connectivities.shape=}")
threshold = paga_thresholds.get(cluster_key, 0.1)
for i in range(len(unique_clusters)):
for j in range(i + 1, len(unique_clusters)):
if connectivities[i, j] > threshold:
start = centroids[unique_clusters[i]]
end = centroids[unique_clusters[j]]
linewidth = 2 + 8 * connectivities[i, j]
ax.plot([start[0], end[0]], [start[1], end[1]],
color='black', linewidth=linewidth, alpha=1)
# Remove axis labels, ticks, and grid
ax.set_title(f'')
ax.set_xlabel('')
ax.set_ylabel('')
ax.set_xticks([])
ax.set_yticks([])
ax.grid(False)
for spine in ax.spines.values():
spine.set_visible(False)
# Save and show the plot
plt.tight_layout()
# plt.savefig(f'{cluster_key}_rep_{replicate}.png', dpi=500)
# plt.savefig(f'{cluster_key}_rep_{replicate}.eps')
plt.show()
return all_connects
Running
[7]:
colors_by_replicate_and_method = {
# Replicate 1
'1': {
'SpatialCOC': ['#fdf0d5', '#264653', '#83c5be', '#2a9d8f', '#f9c74f', '#99582a', '#ee6055'],
'SpatialGlue': ['#f9c74f', '#83c5be', '#2a9d8f', '#fdf0d5', '#264653', '#ee6055', '#99582a'],
'Seurat': ['#83c5be', '#f9c74f', '#99582a', '#2a9d8f', '#fdf0d5', '#ee6055', '#264653'],
'STAGATE': ['#99582a', '#2a9d8f', '#83c5be', '#fdf0d5', '#264653', '#f9c74f', '#ee6055'],
},
# Replicate 2
'2': {
'SpatialCOC': ['#264653', '#ee6055', '#83c5be', '#99582a', '#fdf0d5', '#2a9d8f', '#f9c74f'],
'SpatialGlue': ['#264653', '#fdf0d5', '#99582a', '#f9c74f', '#83c5be', '#ee6055', '#2a9d8f'],
'Seurat': ['#83c5be', '#ee6055', '#99582a', '#264653', '#f9c74f', '#fdf0d5', '#2a9d8f'],
'STAGATE': ['#fdf0d5', '#99582a', '#f9c74f', '#2a9d8f', '#83c5be', '#264653', '#ee6055'],
},
# Replicate 3
'3': {
'SpatialCOC': ['#264653', '#ee6055', '#99582a', '#f9c74f', '#83c5be', '#fdf0d5', '#2a9d8f'],
'SpatialGlue': ['#f9c74f', '#99582a', '#fdf0d5', '#2a9d8f', '#83c5be', '#ee6055', '#264653'],
'Seurat': ['#2a9d8f', '#ee6055', '#99582a', '#264653', '#fdf0d5', '#f9c74f', '#83c5be'],
'STAGATE': ['#264653', '#2a9d8f', '#ee6055', '#fdf0d5', '#83c5be', '#99582a', '#f9c74f'],
},
}
# Set PAGA thresholds for each method
paga_thresholds = {
'SpatialCOC': 0.45,
'SpatialGlue': 0.2,
'Seurat': 0.1,
'STAGATE': 0.2
}
graphs = {}
# Run
for rep in replicate:
print(f"Processing replicate {rep}")
adata = adata_analysis[f'replicate_{rep}']
# print("run")
calculate_umap(adata, methods_analysis)
# print("run2")
centroids_dict = calculate_centroids(adata, methods_analysis)
# print("run3")
perform_paga(adata, methods)
# print("run4")
all_connects = plot_umap_with_centroids(
adata,
methods,
rep,
paga_thresholds,
colors_by_replicate_and_method
)
graphs[rep] = all_connects
Processing replicate 1
SpatialCOC
SpatialGlue
Seurat
STAGATE
SpatialCOC

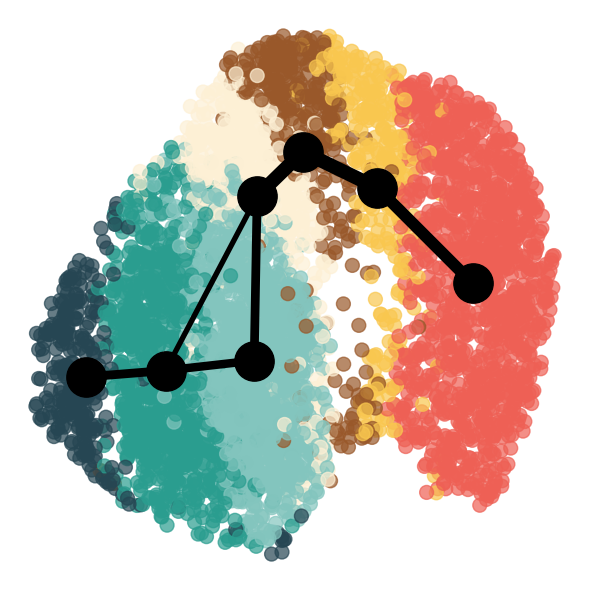

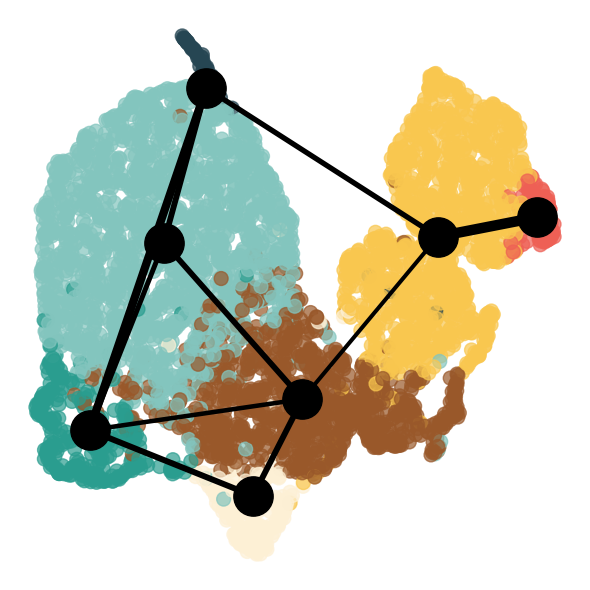

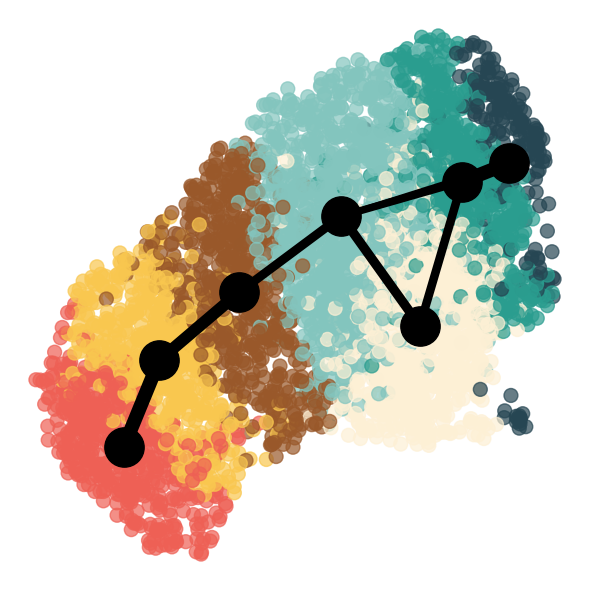

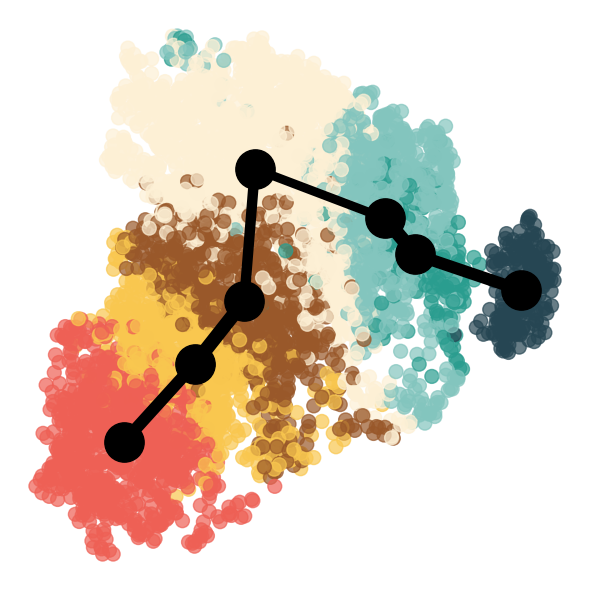

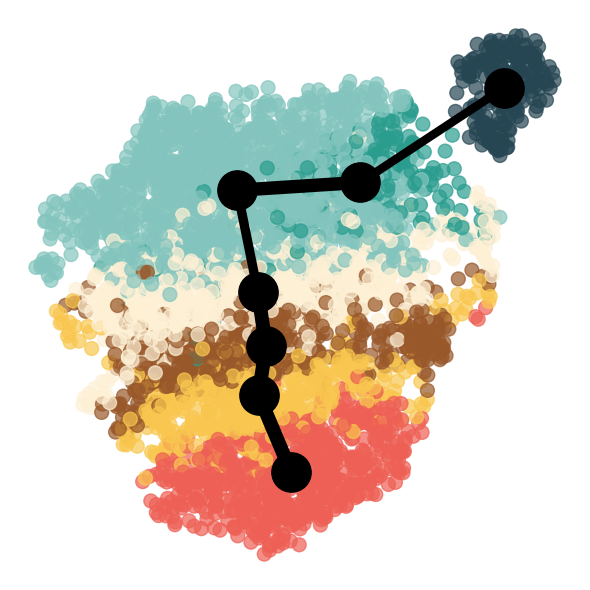

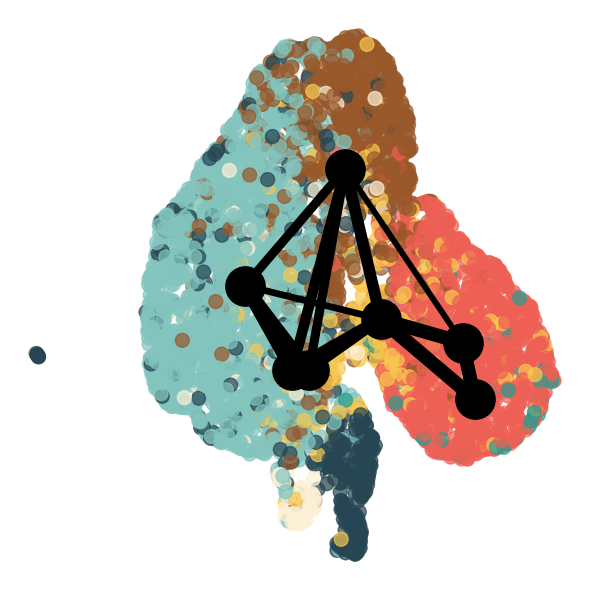

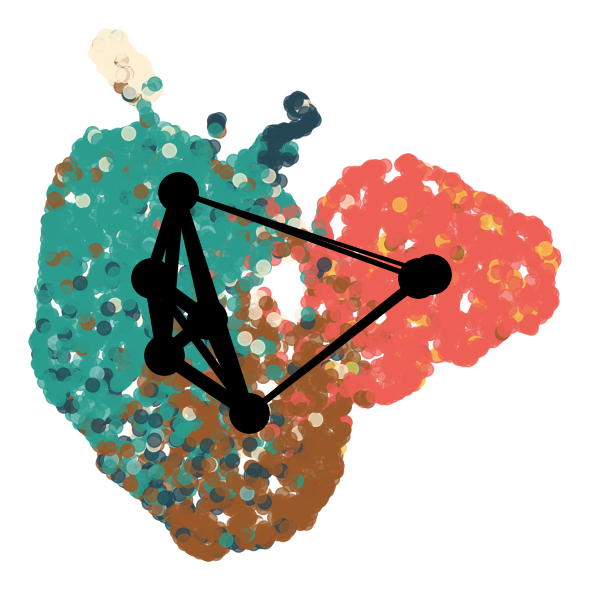

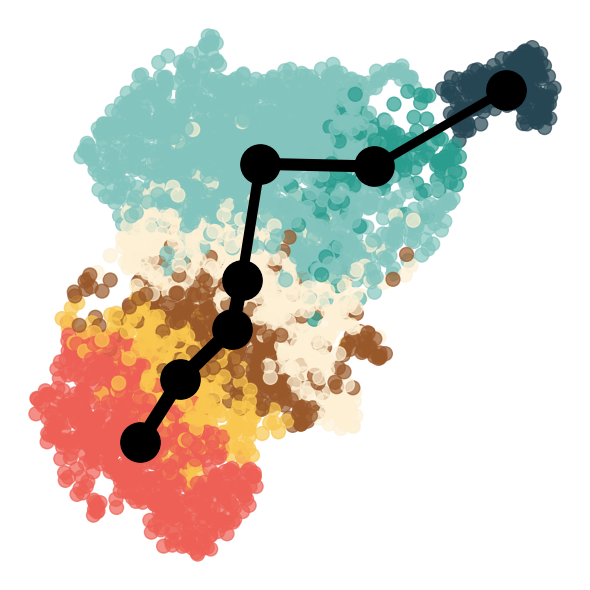

Plot for SpatialCOC in replicate 1:
paga_key='paga_SpatialCOC' connectivities.shape=(7, 7)
SpatialGlue
Plot for SpatialGlue in replicate 1:
paga_key='paga_SpatialGlue' connectivities.shape=(7, 7)
Seurat

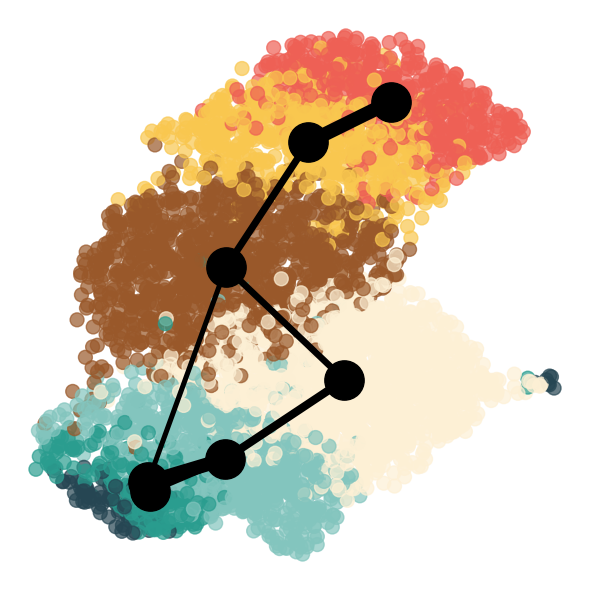

Plot for Seurat in replicate 1:
paga_key='paga_Seurat' connectivities.shape=(7, 7)
STAGATE
Plot for STAGATE in replicate 1:
paga_key='paga_STAGATE' connectivities.shape=(7, 7)
Processing replicate 2
SpatialCOC
SpatialGlue
Seurat
STAGATE
SpatialCOC

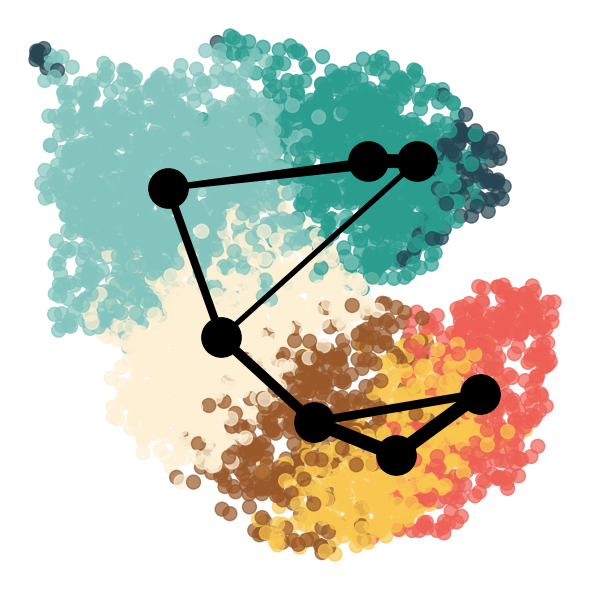

Plot for SpatialCOC in replicate 2:
paga_key='paga_SpatialCOC' connectivities.shape=(7, 7)
SpatialGlue
Plot for SpatialGlue in replicate 2:
paga_key='paga_SpatialGlue' connectivities.shape=(7, 7)
Seurat

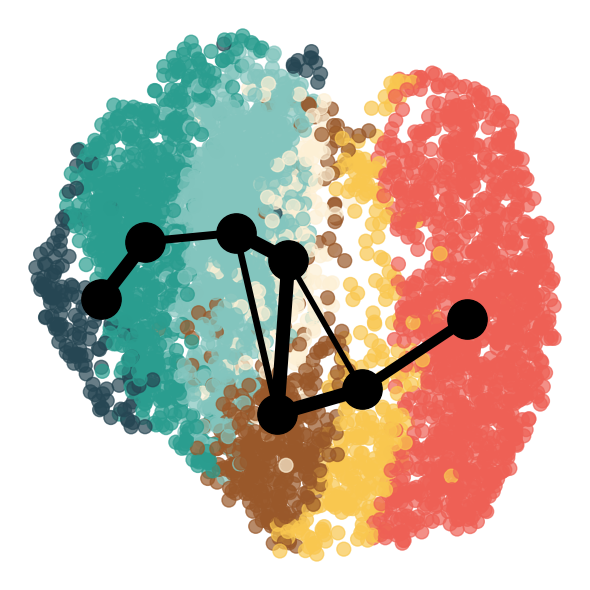

Plot for Seurat in replicate 2:
paga_key='paga_Seurat' connectivities.shape=(7, 7)
STAGATE
Plot for STAGATE in replicate 2:
paga_key='paga_STAGATE' connectivities.shape=(7, 7)
Processing replicate 3
SpatialCOC
SpatialGlue
Seurat
STAGATE
SpatialCOC

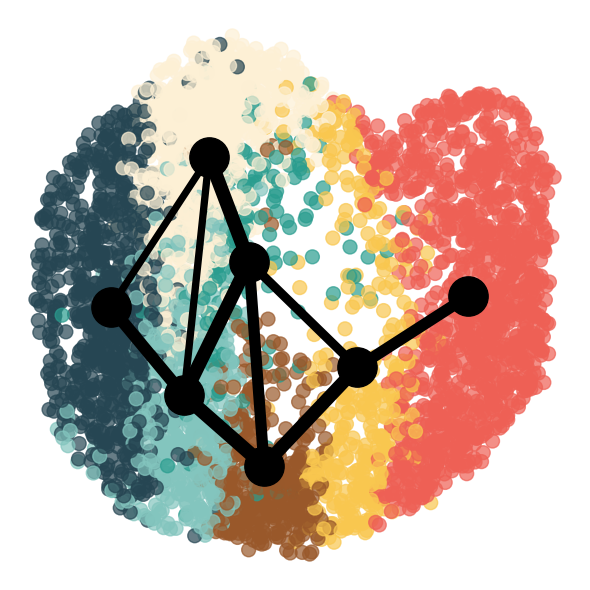

Plot for SpatialCOC in replicate 3:
paga_key='paga_SpatialCOC' connectivities.shape=(7, 7)
SpatialGlue
Plot for SpatialGlue in replicate 3:
paga_key='paga_SpatialGlue' connectivities.shape=(7, 7)
Seurat
Plot for Seurat in replicate 3:
paga_key='paga_Seurat' connectivities.shape=(7, 7)
STAGATE
Plot for STAGATE in replicate 3:
paga_key='paga_STAGATE' connectivities.shape=(7, 7)
Saving Results
[8]:
def save_umap_clustering_to_excel(adata_dict, output_path):
"""
Save UMAP coordinates and clustering results to Excel file
Parameters:
adata_dict: Dictionary with replicate names as keys and AnnData objects as values
output_path: Path to save the Excel file
"""
with pd.ExcelWriter(output_path, engine='openpyxl') as writer:
for replicate_name, adata in adata_dict.items():
print(f"Processing {replicate_name}...")
# Dictionary to store data for each method
data_to_save = {}
# Define mapping between UMAP coordinates and clustering labels
pairs = [
('SpatialCOC_UMAP', 'SpatialCOC'),
('SpatialGlue_UMAP', 'SpatialGlue'),
('Seurat_UMAP', 'Seurat'),
('STAGATE_UMAP', 'STAGATE')
]
# Extract UMAP coordinates and clustering labels for each method
for umap_key, cluster_key in pairs:
if umap_key in adata.obsm and cluster_key in adata.obs:
# Get UMAP coordinates
umap_data = adata.obsm[umap_key]
# Create DataFrame with UMAP coordinates and cluster labels
if umap_data.shape[1] >= 2: # Ensure at least 2 dimensions
umap_df = pd.DataFrame(
umap_data[:, :2], # Take first 2 UMAP dimensions
columns=[f'{umap_key}_1', f'{umap_key}_2']
)
# Add cluster labels
cluster_labels = adata.obs[cluster_key]
if isinstance(cluster_labels, pd.Series):
umap_df[cluster_key] = cluster_labels.values
else:
umap_df[cluster_key] = cluster_labels
# Set index to observation names
umap_df.index = adata.obs_names
data_to_save[f"{cluster_key}_data"] = umap_df
# Combine all DataFrames for this replicate
if data_to_save:
# Start with the first DataFrame
first_key = list(data_to_save.keys())[0]
combined_df = data_to_save[first_key].copy()
# Add columns from remaining DataFrames
for key in list(data_to_save.keys())[1:]:
df = data_to_save[key]
for col in df.columns:
if col not in combined_df.columns:
combined_df[col] = df[col]
# Write to Excel sheet
sheet_name = replicate_name[:31] # Truncate to 31 chars for Excel compatibility
# Save DataFrame to Excel
combined_df.to_excel(writer, sheet_name=sheet_name)
print(f" {replicate_name}: Saved {len(combined_df.columns)} columns")
else:
print(f" {replicate_name}: No valid UMAP/clustering data found")
print(f"\nResults saved to: {output_path}")
# save_umap_clustering_to_excel(adata_analysis, "umap_clustering_results.xlsx")

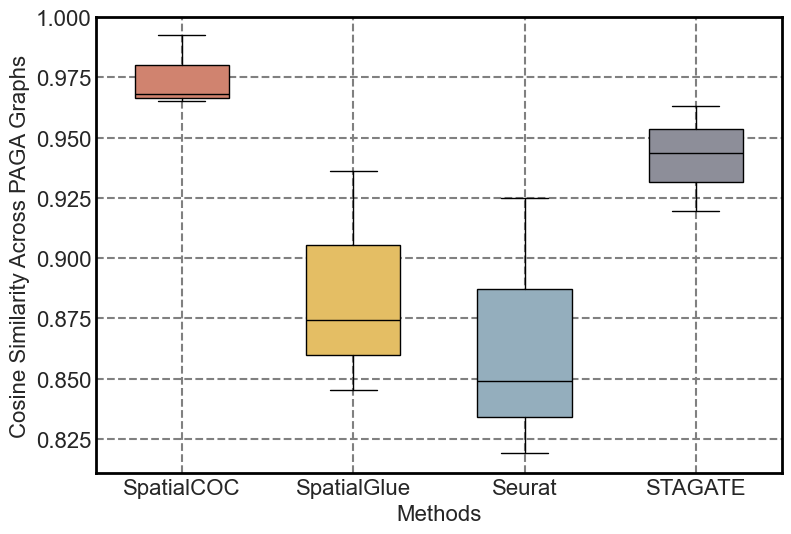

Batch effect removal quantification
[9]:
from scipy.spatial.distance import cosine
from itertools import permutations
import numpy as np
def graph_distance_with_permutation(adj1, adj2, permutation):
"""
Calculate cosine distance between two adjacency matrices under a given permutation
Parameters:
- adj1: numpy array, first adjacency matrix
- adj2: numpy array, second adjacency matrix
- permutation: tuple, permutation to apply to adj2
Returns:
- distance: float, cosine distance between the two matrices
"""
n = len(permutation)
# Create permutation matrix from the permutation tuple
perm_matrix = np.zeros((n, n))
for i, j in enumerate(permutation):
perm_matrix[i, j] = 1
# Apply permutation to adj2: P * A * P^T
adj2_permuted = perm_matrix @ adj2 @ perm_matrix.T
# Flatten matrices and compute cosine distance
vec1 = adj1.ravel()
vec2 = adj2_permuted.ravel()
return cosine(vec1, vec2)
def find_optimal_graph_matching(adj1, adj2):
"""
Find optimal permutation that minimizes distance between two adjacency matrices
Parameters:
- adj1: numpy array, first adjacency matrix
- adj2: numpy array, second adjacency matrix
Returns:
- best_permutation: tuple, permutation that gives minimum distance
- min_distance: float, minimum distance achieved
- all_distances: list, distances for all permutations
"""
n = adj1.shape[0]
identity = tuple(range(n))
# Try all permutations (warning: factorial complexity!)
all_perms = list(permutations(range(n)))
min_distance = float('inf')
best_permutation = identity
all_distances = []
for perm in all_perms:
dist = graph_distance_with_permutation(adj1, adj2, perm)
all_distances.append(dist)
if dist < min_distance:
min_distance = dist
best_permutation = perm
return best_permutation, min_distance, all_distances
def calculate_pairwise_graph_distances(graphs, methods):
"""
Calculate pairwise distances between replicate graphs for each method
Parameters:
- graphs: dict, nested dictionary: graphs[replicate][method] = adjacency_matrix
- methods: list, list of method names to analyze
Returns:
- results: dict, nested dictionary with distance results for each method and pair
"""
replicates = sorted(graphs.keys())
results = {}
for method in methods:
print(f"\n{'='*60}")
print(f"Analyzing method: {method}")
print(f"{'='*60}")
method_results = {}
# Compare each pair of replicates
for i, rep1 in enumerate(replicates):
for j, rep2 in enumerate(replicates):
if i < j: # Only compare each pair once
pair_key = f"Rep{rep1}_vs_Rep{rep2}"
adj1 = graphs[rep1][method]
adj2 = graphs[rep2][method]
print(f"\nComparing: Replicate {rep1} vs Replicate {rep2}")
print(f"Matrix 1 shape: {adj1.shape}, Matrix 2 shape: {adj2.shape}")
# Find optimal permutation
best_perm, min_dist, all_dists = find_optimal_graph_matching(adj1, adj2)
# Also compute unaligned distance (without permutation)
identity = tuple(range(adj1.shape[0]))
unaligned_dist = graph_distance_with_permutation(adj1, adj2, identity)
method_results[pair_key] = {
'best_permutation': best_perm,
'min_distance': min_dist,
'unaligned_distance': unaligned_dist,
'distance_reduction': unaligned_dist - min_dist,
'reduction_percentage': (unaligned_dist - min_dist) / unaligned_dist * 100 if unaligned_dist > 0 else 0
}
print(f"Best permutation: {best_perm}")
print(f"Minimum distance: {min_dist:.6f}")
# Optional detailed output:
# print(f"Unaligned distance: {unaligned_dist:.6f}")
# print(f"Distance reduction: {unaligned_dist - min_dist:.6f} ({(unaligned_dist - min_dist) / unaligned_dist * 100:.2f}%)")
results[method] = method_results
return results
[10]:
methods_to_analyze = ['SpatialCOC', 'SpatialGlue', 'Seurat', 'STAGATE']
graph_matching_results = calculate_pairwise_graph_distances(graphs, methods_to_analyze)
============================================================
Analyzing method: SpatialCOC
============================================================
Comparing: Replicate 1 vs Replicate 2
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (6, 1, 4, 5, 2, 0, 3)
Minimum distance: 0.032015
Comparing: Replicate 1 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (6, 3, 5, 2, 1, 0, 4)
Minimum distance: 0.007364
Comparing: Replicate 2 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (0, 3, 1, 4, 5, 2, 6)
Minimum distance: 0.035020
============================================================
Analyzing method: SpatialGlue
============================================================
Comparing: Replicate 1 vs Replicate 2
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (3, 5, 0, 6, 4, 1, 2)
Minimum distance: 0.063992
Comparing: Replicate 1 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (0, 6, 3, 4, 5, 2, 1)
Minimum distance: 0.125532
Comparing: Replicate 2 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (3, 0, 6, 2, 4, 1, 5)
Minimum distance: 0.154660
============================================================
Analyzing method: Seurat
============================================================
Comparing: Replicate 1 vs Replicate 2
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (2, 6, 3, 5, 0, 1, 4)
Minimum distance: 0.180691
Comparing: Replicate 1 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (3, 1, 0, 6, 4, 5, 2)
Minimum distance: 0.150814
Comparing: Replicate 2 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (0, 1, 4, 3, 2, 6, 5)
Minimum distance: 0.074865
============================================================
Analyzing method: STAGATE
============================================================
Comparing: Replicate 1 vs Replicate 2
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (1, 0, 6, 5, 2, 4, 3)
Minimum distance: 0.036836
Comparing: Replicate 1 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (6, 2, 3, 0, 5, 1, 4)
Minimum distance: 0.056307
Comparing: Replicate 2 vs Replicate 3
Matrix 1 shape: (7, 7), Matrix 2 shape: (7, 7)
Best permutation: (2, 0, 5, 4, 1, 6, 3)
Minimum distance: 0.080665
[11]:
import pandas as pd
# Create a summary table from the graph matching results
summary_data = []
for method in methods_to_analyze:
for pair_key, pair_result in graph_matching_results[method].items():
summary_data.append({
'Method': method,
'Replicate_Pair': pair_key,
'Min_Distance': pair_result['min_distance'],
'Unaligned_Distance': pair_result['unaligned_distance'],
'Distance_Reduction': pair_result['distance_reduction'],
'Reduction_Percentage(%)': pair_result['reduction_percentage']
})
summary_df = pd.DataFrame(summary_data)
print("\n" + "="*80)
print("GRAPH MATCHING RESULTS SUMMARY")
print("="*80)
print(summary_df.to_string(index=False))
# Average minimum distances by method
print("\n" + "="*80)
print("AVERAGE MINIMUM DISTANCE BY METHOD (lower = more similar)")
print("="*80)
method_avg = summary_df.groupby('Method')['Min_Distance'].mean().sort_values()
for method, avg_dist in method_avg.items():
print(f"{method:15s}: {avg_dist:.6f}")
# Average unaligned distances by method
print("\n" + "="*80)
print("AVERAGE UNALIGNED DISTANCE BY METHOD")
print("="*80)
method_avg_unaligned = summary_df.groupby('Method')['Unaligned_Distance'].mean().sort_values()
for method, avg_dist in method_avg_unaligned.items():
print(f"{method:15s}: {avg_dist:.6f}")
================================================================================
GRAPH MATCHING RESULTS SUMMARY
================================================================================
Method Replicate_Pair Min_Distance Unaligned_Distance Distance_Reduction Reduction_Percentage(%)
SpatialCOC Rep1_vs_Rep2 0.032015 0.705136 0.673121 95.459733
SpatialCOC Rep1_vs_Rep3 0.007364 0.328222 0.320858 97.756313
SpatialCOC Rep2_vs_Rep3 0.035020 0.697352 0.662332 94.978173
SpatialGlue Rep1_vs_Rep2 0.063992 0.659802 0.595810 90.301322
SpatialGlue Rep1_vs_Rep3 0.125532 0.541153 0.415620 76.802825
SpatialGlue Rep2_vs_Rep3 0.154660 0.543575 0.388914 71.547533
Seurat Rep1_vs_Rep2 0.180691 0.599036 0.418345 69.836363
Seurat Rep1_vs_Rep3 0.150814 0.220010 0.069196 31.451407
Seurat Rep2_vs_Rep3 0.074865 0.452304 0.377439 83.448107
STAGATE Rep1_vs_Rep2 0.036836 0.809748 0.772912 95.450930
STAGATE Rep1_vs_Rep3 0.056307 0.604051 0.547744 90.678434
STAGATE Rep2_vs_Rep3 0.080665 0.341054 0.260389 76.348310
================================================================================
AVERAGE MINIMUM DISTANCE BY METHOD (lower = more similar)
================================================================================
SpatialCOC : 0.024800
STAGATE : 0.057936
SpatialGlue : 0.114728
Seurat : 0.135457
================================================================================
AVERAGE UNALIGNED DISTANCE BY METHOD
================================================================================
Seurat : 0.423783
SpatialCOC : 0.576903
SpatialGlue : 0.581510
STAGATE : 0.584951
[12]:
pivot_dist = (summary_df
.pivot(index='Replicate_Pair', columns='Method', values='Min_Distance')
.loc[['Rep1_vs_Rep2', 'Rep1_vs_Rep3', 'Rep2_vs_Rep3'],
['SpatialCOC', 'SpatialGlue', 'Seurat', 'STAGATE']])
pivot_sim = 1 - pivot_dist
print(pivot_sim)
output_file = 'Cosine_Similarity.xlsx'
with pd.ExcelWriter(output_file, engine='openpyxl') as writer:
pivot_sim.to_excel(writer, sheet_name='Cosine_Similarity', index=True)
Method SpatialCOC SpatialGlue Seurat STAGATE
Replicate_Pair
Rep1_vs_Rep2 0.967985 0.936008 0.819309 0.963164
Rep1_vs_Rep3 0.992636 0.874468 0.849186 0.943693
Rep2_vs_Rep3 0.964980 0.845340 0.925135 0.919335
Boxplot: Graph Distance Distribution Across Methods
[13]:
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
# ---------- 1. Load and prepare data ----------
df = pd.read_excel('Cosine_Similarity.xlsx')
methods_disp = ['SpatialCOC', 'SpatialGlue', 'Seurat', 'STAGATE']
colors = ['#D0836F', '#E4BE64', '#94aebd', '#8D8E99']
plot_data = [df[col].dropna().values for col in methods_disp]
# ---------- 2. Configure plot style ----------
fontsize = 16
plt.rcParams['font.sans-serif'] = ['Arial']
plt.rcParams['font.size'] = fontsize
plt.rcParams['axes.edgecolor'] = 'black'
# ---------- 3. Set y-axis limits ----------
all_vals = np.concatenate(plot_data)
delta = 0.05 * (all_vals.max() - all_vals.min())
y_min, y_max = all_vals.min() - delta, all_vals.max() + delta
# ---------- 4. Create boxplot ----------
fig, ax = plt.subplots(figsize=(8, 5.3))
bp = ax.boxplot(plot_data, patch_artist=True,
boxprops=dict(linewidth=1, edgecolor='black'),
medianprops=dict(linewidth=1, color='black'),
whiskerprops=dict(linewidth=1, color='black'),
capprops=dict(linewidth=1, color='black'),
widths=0.55, showfliers=False)
# Fill boxes with method-specific colors
for patch, color in zip(bp['boxes'], colors):
patch.set_facecolor(color)
# ---------- 5. Configure axes labels and ticks ----------
ax.set_xticks(range(1, len(methods_disp)+1))
ax.set_xticklabels(methods_disp, fontsize=fontsize)
ax.set_xlabel('Methods', fontsize=fontsize)
ax.set_ylabel('Cosine Similarity Across PAGA Graphs', fontsize=fontsize)
# Set y-axis tick font size
ax.tick_params(axis='y', labelsize=fontsize)
ax.set_ylim(y_min, 1)
# Set spine width for all axes
for spine in ax.spines.values():
spine.set_linewidth(2)
# Add grid lines for better readability
ax.grid(axis='y', color='gray', linestyle='--', alpha=1, zorder=-10, linewidth=1.5)
for x in range(1, len(methods_disp)+1):
ax.axvline(x=x, color='gray', linestyle='--', alpha=1, zorder=-10, linewidth=1.5)
plt.tight_layout(pad=0.1, rect=[0.03, 0, 1, 0.98])
# plt.savefig('Cosine_Similarity_Boxplot.png', dpi=500)
# plt.savefig('Cosine_Similarity_Boxplot.eps')
plt.show()
