Moran Visualization of the Mouse Spleen Dataset

Loading Packages

import warnings
warnings.filterwarnings('ignore')

import scanpy as sc
import squidpy as sq
import uuid
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

import sys
sys.path.append('../Mouse_Spleen/')

Loading Data

slices = ['1', '2']  ## 1, 2
# List of methods
methods = ['SpatialCOC', 'COSMOS', 'SpatialGlue', 'Seurat', 'MultiVI', 'MultiMAP', 'STAGATE', 'SpaGCN', 'Modality1', 'Modality2']
# Create a dictionary to store data for each slice
adata_results = {}

# Load data and store it
for slice_name in slices:
    path = f'../../Mouse_Spleen_Replicate{slice_name}.h5ad'
    result = sc.read_h5ad(path)  # Assuming 'sc' is the Scanpy library
    adata_results[slice_name] = result

adata_results

{'1': AnnData object with n_obs × n_vars = 2568 × 0
     obs: 'SpatialCOC', 'SpatialGlue', 'STAGATE', 'SpaGCN', 'Modality1', 'Modality2', 'MultiMAP', 'MultiVI', 'Seurat', 'COSMOS'
     uns: 'COSMOS_colors', 'MultiMAP_colors', 'Seurat_colors'
     obsm: 'COSMOS', 'Modality1', 'Modality2', 'MultiMAP', 'MultiVI', 'STAGATE', 'Seurat', 'SpatialCOC', 'SpatialGlue', 'spatial',
 '2': AnnData object with n_obs × n_vars = 2768 × 0
     obs: 'SpatialCOC', 'SpatialGlue', 'STAGATE', 'SpaGCN', 'Modality1', 'Modality2', 'MultiMAP', 'MultiVI', 'Seurat', 'COSMOS'
     uns: 'COSMOS_colors', 'Seurat_colors', 'SpaKnit_colors'
     obsm: 'COSMOS', 'Modality1', 'Modality2', 'MultiMAP', 'MultiVI', 'STAGATE', 'Seurat', 'SpatialCOC', 'SpatialGlue', 'spatial'}

Calculating Moran’s I Score

# Dictionary to store Moran's I scores for each slice
moran_scores = {}

# Iterate over each slice and its corresponding data
for slice_name, adata in adata_results.items():
    print(slice_name)
    # Construct the spatial graph (adjust parameters based on the data type)
    sq.gr.spatial_neighbors(adata, coord_type='grid')  # or 'generic'
    moran_scores[slice_name] = {}

    # Iterate over each method
    for method in methods:
        # Skip if the method is not present in the observation columns
        if method not in adata.obs.columns:
            continue

        # Get the cluster information for the current method
        cluster = adata.obs[method]
        # Get unique categories, ignoring NaN values
        categories = cluster.dropna().unique()
        moran_scores[slice_name][method] = {}

        # Iterate over each category
        for category in categories:
            # Create a mask for the current category
            mask = cluster == category
            # Generate a unique temporary column name
            temp_col = f"temp_{uuid.uuid4().hex}"

            try:
                # Add the mask as a new column in the observation DataFrame
                adata.obs[temp_col] = mask.astype(int)
                # Calculate Moran's I spatial autocorrelation
                sq.gr.spatial_autocorr(
                    adata,
                    mode="moran",
                    n_perms=100,  # Number of permutations for significance testing
                    attr="obs",  # Attribute type (observations)
                    genes=[temp_col],  # Use the temporary column name
                    n_jobs=4,  # Number of jobs to run in parallel
                    seed=2024  # Random seed for reproducibility
                )
                # Retrieve the Moran's I score from the results
                score = adata.uns['moranI'].loc[temp_col, 'I']
                # Store the score in the dictionary
                moran_scores[slice_name][method][category] = score
            finally:
                # Clean up: Remove the temporary column
                if temp_col in adata.obs:
                    del adata.obs[temp_col]

1

2

Storing the Results as an Excel

# Function to convert category keys to integers and sort them in ascending order
def convert_and_sort_categories(moran_scores):
    for slice_name, methods in moran_scores.items():
        for method, categories in methods.items():
            # Convert category keys to integers and sort them
            sorted_categories = {
                int(k): v for k, v in sorted(categories.items(), key=lambda x: int(x[0]))
            }
            moran_scores[slice_name][method] = sorted_categories
    return moran_scores

# Convert category keys to integers and sort them
moran_scores = convert_and_sort_categories(moran_scores)

# Create an Excel file
with pd.ExcelWriter("moran_scores_output.xlsx") as writer:
    # Dictionary to store the average values for all slices
    all_averages = {}

    for slice_name, methods in moran_scores.items():
        # Convert to DataFrame (each row represents a method, column names are categories)
        df = pd.DataFrame.from_dict(methods, orient="index")

        # Calculate the mean value for each row
        averages = df.mean(axis=1)
        all_averages[slice_name] = averages

        # Clean the sheet name (Excel limit: max 31 characters, no special symbols)
        sheet_name = str(slice_name)\
            .replace(":", "_").replace("/", "_")[:31]

        # Write to Excel (missing values are represented as empty strings)
        df.to_excel(
            writer,
            sheet_name=sheet_name,
            na_rep="",
            index_label="Method"
        )

    # Store the average values of all slices in a new sheet
    averages_df = pd.DataFrame.from_dict(all_averages, orient="index")

    # Transpose the averages DataFrame so that each row corresponds to a slice and each column corresponds to a method's average value
    averages_df = averages_df.transpose()

    # Write the averages sheet
    averages_df.to_excel(
        writer,
        sheet_name="Averages",
        index_label="Method"
    )

# Define methods
methods = ['SpatialCOC', 'COSMOS', 'SpatialGlue', 'Seurat', 'MultiVI', 'MultiMAP', 'STAGATE', 'SpaGCN']
# Define colors corresponding to each method
colors = ['#D0836F', '#df871b', '#E4BE64', '#94aebd', '#87AC9A', '#9B8169', '#8D8E99', '#F5ECBA']

# Set y-axis range (adjust according to actual data)
y_min = -0.02
y_max = 1.02

# Set global font size and font
fontsize = 24
plt.rcParams['font.sans-serif'] = ['Arial']
plt.rcParams['font.size'] = fontsize

# Read the Excel file
file_path = 'moran_scores_output.xlsx'  # Replace with your Excel file path
xls = pd.ExcelFile(file_path)

# Get all sheet names (each sheet represents a slice)
slices = xls.sheet_names

# Iterate through each slice
for slice_name in slices:
    # Read data from the current sheet
    df = pd.read_excel(xls, sheet_name=slice_name)

    # Prepare data: Moran score for each method
    data = []
    for method in methods:
        # Get the data row for the current method and ignore missing values
        method_data = df.loc[df['Method'] == method].drop(columns=['Method']).values.flatten()
        method_data = method_data[~np.isnan(method_data)]  # Ignore NaN values
        data.append(method_data)

    # If all data for a method is missing, skip that method
    data = [d for d in data if len(d) > 0]

    # If there is no valid data for any method, skip the current slice
    if not data:
        print(f"No valid data for {slice_name}, skipping...")
        continue

    # Calculate the medians of Modality1 and Modality2 separately
    modality1_data = df.loc[df['Method'] == 'Modality1'].drop(columns=['Method']).values.flatten()
    modality1_data = modality1_data[~np.isnan(modality1_data)]  # Ignore NaN values
    median_modality1 = np.median(modality1_data) if len(modality1_data) > 0 else None

    modality2_data = df.loc[df['Method'] == 'Modality2'].drop(columns=['Method']).values.flatten()
    modality2_data = modality2_data[~np.isnan(modality2_data)]  # Ignore NaN values
    median_modality2 = np.median(modality2_data) if len(modality2_data) > 0 else None

    # Determine the best performance between the two medians
    if median_modality1 is not None and median_modality2 is not None:
        best_median = max(median_modality1, median_modality2)  # Choose the smaller median as the best performance
    else:
        best_median = None

    # Create a new figure
    plt.figure(figsize=(5, 5))

    # Draw the boxplot
    bp = plt.boxplot(data, patch_artist=True,
                     boxprops=dict(linestyle='-', linewidth=1, edgecolor='black'),  # Box edges
                     medianprops=dict(linestyle='-', linewidth=1, color='black'),  # Median line
                     whiskerprops=dict(linestyle='-', linewidth=1, color='black'),  # Whiskers
                     capprops=dict(linestyle='-', linewidth=1, color='black'),  # Caps
                     widths=0.85,  # Box width
                     showfliers=False)  # Do not show outliers

    # Color the boxes
    for patch, color in zip(bp['boxes'], colors[:len(data)]):  # Color only the boxes with actual data
        patch.set_facecolor(color)

    # Remove x-axis tick labels
    plt.xticks([])  # Remove x-axis tick labels

    # Set a unified y-axis range
    plt.ylim(y_min, y_max)

    # Add y-axis label
    plt.ylabel('Moran\'s I Score', fontsize=fontsize)

    # Thicken the figure's border
    for spine in plt.gca().spines.values():
        spine.set_linewidth(2)

    # Add grid lines
    plt.grid(axis='y', color='gray', linestyle='--', alpha=1, zorder=-10, linewidth=1.5)

    # Add vertical dashed lines
    for x in range(1, len(data) + 1):
        plt.axvline(x=x, color='gray', linestyle='--', alpha=1, zorder=-10, linewidth=1.5)

    # Add a red dashed line for the median of single modality values
    if best_median is not None:
        plt.axhline(y=best_median, color='#FF0000', linestyle='--', linewidth=2.5, zorder=10)

    # Print plot information
    print(f"Drawing plot for replicate {slice_name} - Moran Score")

    # Adjust layout
    plt.tight_layout(pad=0.1, rect=[0, 0, 1, 1])

    # Save the image
    if slice_name == "Averages":
        save_path = "./"
    else:
        save_path = f"./replicate{slice_name}/"
    plt.savefig(save_path + f"Moran_Score.png", dpi=500)
    plt.savefig(save_path + f"Moran_Score.eps")

    plt.show()

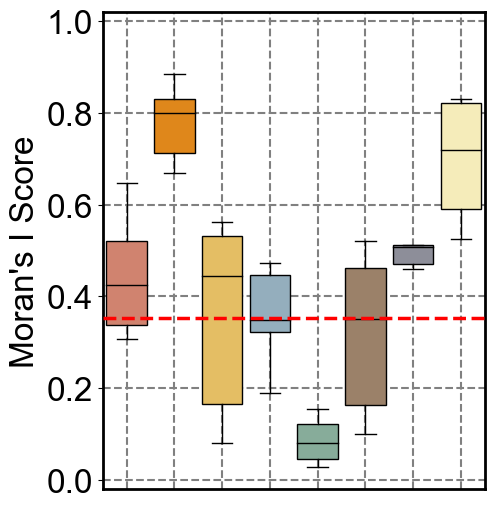

Drawing plot for replicate 1 - Moran Score

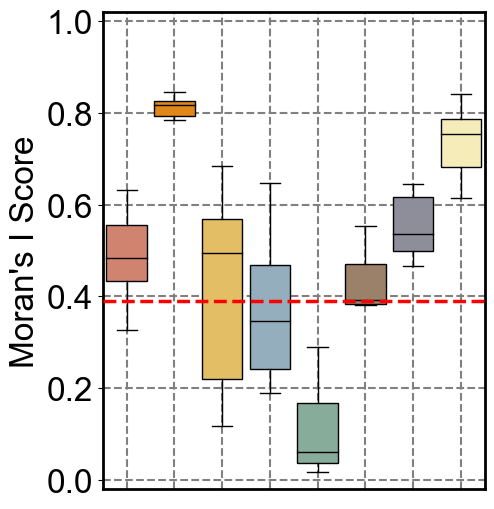

Drawing plot for replicate 2 - Moran Score

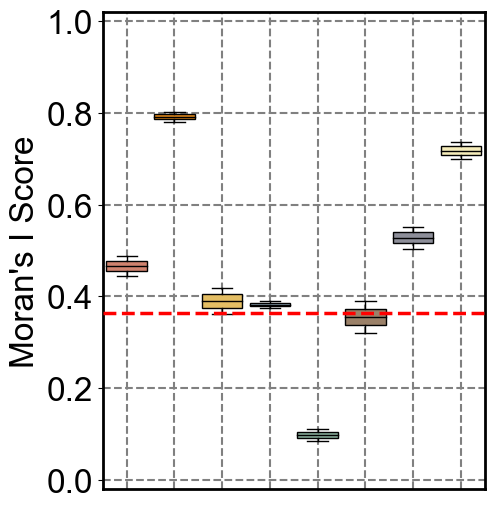

Drawing plot for replicate Averages - Moran Score
